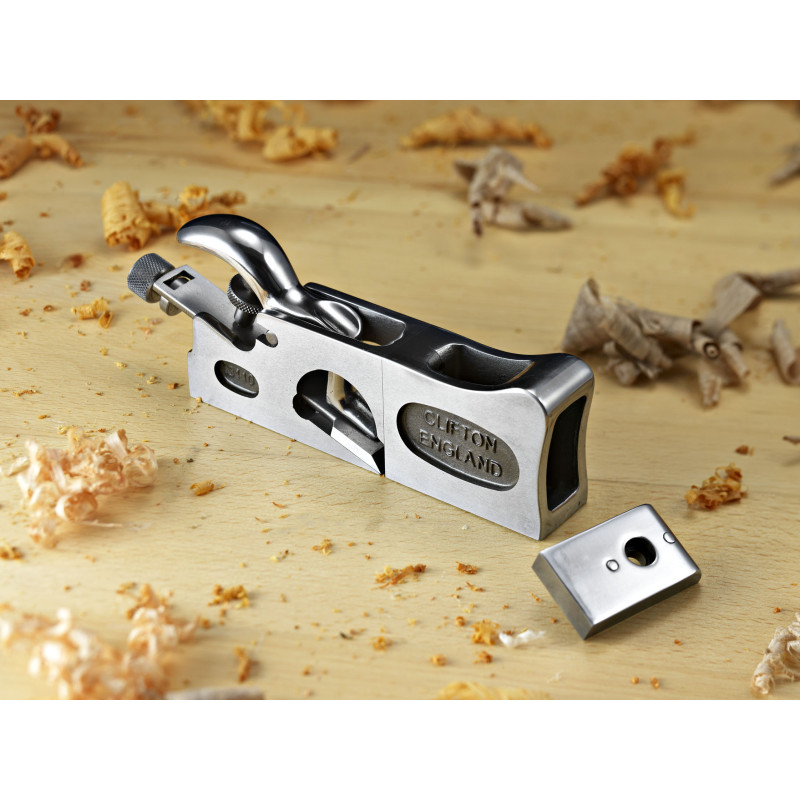

The Clifton 3110 is an extremely versatile tool combining the features of a shoulder rebate plane, chisel plane and adjustable mouth bull-nose plane.
The Clifton 3110 is an extremely versatile tool combining the features of a shoulder rebate plane, chisel plane and adjustable mouth bull-nose plane. As a shoulder plane, the front extension piece is fitted; as a chisel plane all nose pieces are removed; and as a bull-nose plane, the thinner nose piece is fitted in conjunction with one or both of the precision machined steel shims (1/32" and 1/64"), or for very fine work, without either shim.
The body is machined from a quality grey iron casting and precision ground on the sole and sides. The lever arm is also of grey iron. The cutting iron fits smoothly onto the machined pads in the body and can be adjusted by means of the screw. Bright ground finish.
Specifications:
Cutter 1 1/8" (29 mm) wide, high quality oil hardened tool steel, 59-61 Rockwell C, ground to 25° primary and 30° secondary
Length 6" (152 mm)
Approx. weight 2 lbs (0.9 kg)
Data sheet
Specific References
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
A shoulder plane and a rebate plane both have a blade that reaches the edges, but they are used for different tasks. The shoulder plane is narrow and precise and is used to trim tenon shoulders and adjust joints, often on end grain. The rebate plane often has a fence and depth stop and is used to cut rebates along an edge.
The guide explains when to choose which.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
