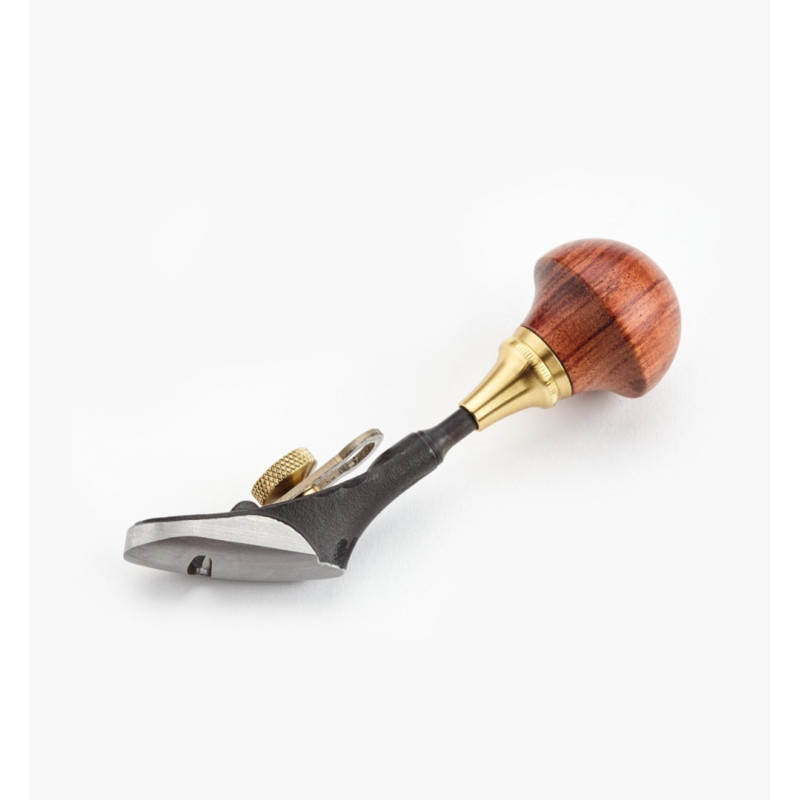

Veritas Palm Plane, Double-Convex Sole
kr1,050.00
Tax included
Veritas Palm Plane, Double-Convex Sole. With a height-adjustable palm rest for better in-hand registration, these miniature planes are easily maneuvered and permit fine, controlled cuts.
With a height-adjustable palm rest for better in-hand registration, these miniature planes are easily maneuvered and permit fine, controlled cuts.
The investment-cast steel body has a 45° bed angle and a fixed mouth, and uses a brass retention screw to secure the included 30° bevel A2 tool steel blade (0.06" thick by 3/8" wide). The soles are approximately 1 1/2" long by 5/8" wide and are available in four profiles.
The concave and convex planes have curved soles with a side-to-side radius of 1/2". The double-convex (spoon) version has a 1/2" side-to-side radius and a 4" front-to-back radius.
The hardwood palm rest is removable for work in tight spaces. Replacement blades are available separately (convex and double-convex planes use the same blade).
Made in Canada. Patent pending.
05P90.05
Data sheet
- Hyveltyp
- Minihyvel
- Bredd (tum)
- 3/8" (10 mm)
- Sulans längd
- Under 150 mm
- Bäddvinkel
- 45°
- Material
- Stål
- Stål ingår
- Ja
Specific References
- EAN13
- 722356000359
- MPN
- 05P9005
- HS code
- 82053000
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
