- Only Plane/No blade

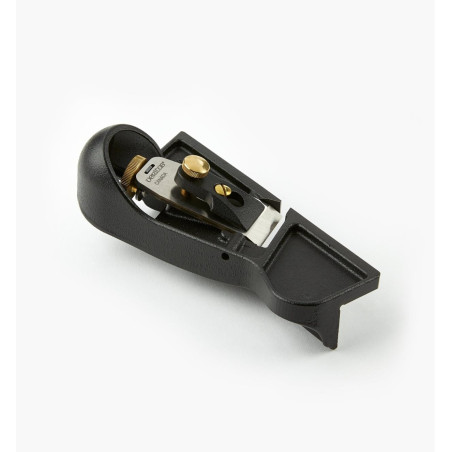

Veritas Edge-Trimming Plane, Left-Hand, without Blade
kr1,437.50
Tax included
Veritas edge-trimming plane, left-hand. Edge-trimming planes work end grain or give final trimming cuts on jointed boards, for smooth edges exactly 90° to the face. This plane is cast in durable ductile iron for everyday use and comes in right- and left-hand models.
Veritas edge-trimming plane, left-hand. Edge-trimming planes work end grain or give final trimming cuts on jointed boards, for smooth edges exactly 90° to the face. This plane is cast in durable ductile iron for everyday use and comes in right- and left-hand models.
You may need only one model; the choice is often based on your dominant hand, but neither model is exclusively for left- or right-handed users. They are complementary, and having both lets you handle any grain direction, handy for boards with only one true reference face, such as mouldings.
It has a 12° bed angle and 30° blade skew. The 1/8" thick, 1 1/4" wide blades in A2, O1 or PM-V11 work stock up to 1" wide. The plane weighs 1 lb 6 oz.
Depth is adjusted with a large thumb wheel and an independent traveller for fast, accurate setting with no blade skewing. Side set screws keep the blade from shifting when it hits a knot. The fence is drilled so you can add blocks or a wooden wedge to cut controlled bevels, as in boatbuilding.
The plane is supplied without a blade; choose a blade separately.
05P03.70
Data sheet
- Hyveltyp
- Kanthyvel
- Bredd (tum)
- 1 1/4" (32 mm)
- Bäddvinkel
- 12°
- Material
- Segjärn
- Stål ingår
- Nej
- Utförande
- Vänsterställd
Specific References
- EAN13
- 722356007532
- MPN
- 05P0370
- HS code
- 82053000
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
