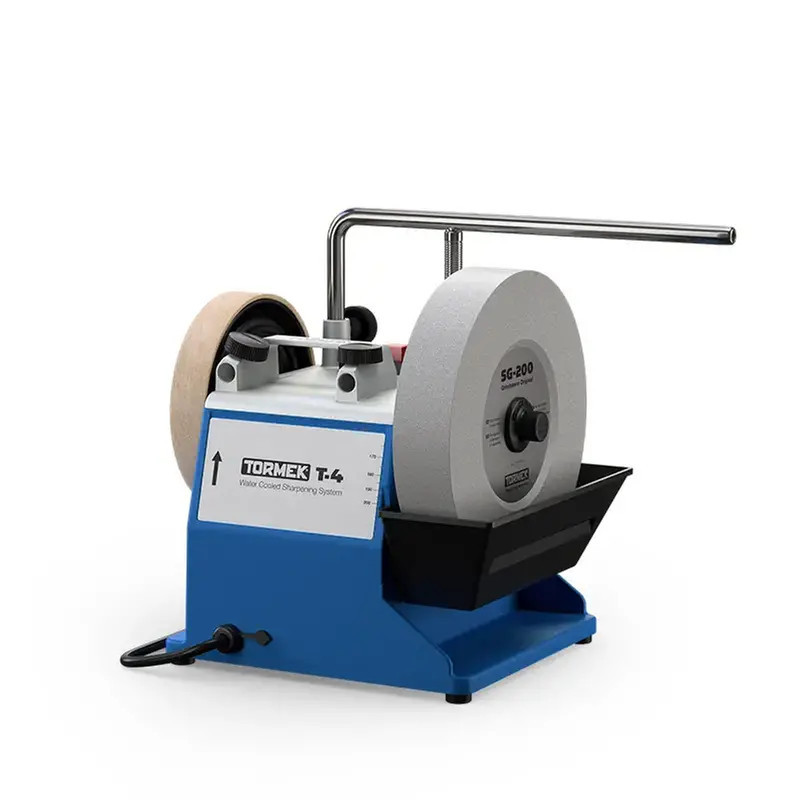

Tormek T-4 Water-Cooled Sharpener
kr5,142.50
Tax included
Tormek T-4 is an enhancement of the T-3 model, taking the precision and stability to a completely new level. Vital functions like the motor and the main shaft are mounted in the zinc cast top which includes the integrated sleeves for the Universal Support.
Tormek T-4 is an enhancement of the T-3 model, taking the precision and stability to a completely new level. Vital functions like the motor and the main shaft are mounted in the zinc cast top which includes the integrated sleeves for the Universal Support. This advanced design ensures an unbeatable precision for the Universal Support, which is the foundation of the Tormek jig system. You get a high quality machine ideal for home and hobby work which can sharpen all the common edge tools.
Delivered with the Stone Grader SP-650, AngleMaster WM-200, honing compound and the comprehensive Tormek Handbook on sharpening. Configure the T-4 with your choice of jigs according to the tools that you are choosing to sharpen. The jigs are sold separately.
Specifications:
Dimensions: width 230 mm (9 1/16"), depth 200 mm (7 7/8"), height 260 mm (10 1/4")
Weight: machine only 8.0 kg, shipping weight 9.8 kg
Grindstone: Tormek Original Grindstone, aluminium oxide, 200 x 40 mm (8" x 1 5/8"), 120 rpm, torque 8.4 Nm
Leather honing wheel: 145 x 26 mm (5 3/4" x 1")
Stainless steel main shaft and stone hardware, EzyLock in composite
Housing: zinc cast top, impact resistant ABS plastic
Motor: industrial single phase, 120 W (input), 230 V 50 Hz, duty 30 min/hour, maintenance free
Silent running, 52 dB, 10,000 hour life
T-4 ORIG/SCAND
Data sheet
- Kornstorlek
- 220
1000 - Grovlek
- Grov (under 600)
Medel (600–2000) - Passar maskin
- Tormek T-4
- Skivdiameter
- 200 mm
- Slipmedel
- Aluminiumoxid
Specific References
- EAN13
- 7392485020035
- MPN
- T-4
- HS code
- 84603900
Both machines sharpen all common edge tools with the same jig system. The difference is in size and capacity:
Tormek T-4 – 200 mm grindstone, 120 W motor for intermittent use (30 min per hour), weighs 8 kg. For home and hobby use.
Tormek T-8 – 250 mm grindstone, solid cast housing with minimal play and an industrial motor for continuous use, weighs 14.8 kg. For those who sharpen a lot.
The T-8 Custom is a T-8 without stone and honing wheel, so you choose your own. The T-4 Bushcraft is a T-4 with a knife jig and axe jig in the box.
First choose the right grindstone size: 200 mm for the T-4 and 250 mm for the T-8. Then choose by what you sharpen:
Original grindstone SG – an all-round stone supplied with the machine. With the SP-650 stone grader you change the surface from 220 grit to about 1000 grit.
Blackstone Silicon SB – for high-speed steel (HSS), such as turning tools
Japanese water stone SJ – 4000 grit for a polished, razor-sharp edge
Diamond wheel DC, DF or DE – 360, 600 or 1200 grit, for any material including ceramics and carbide. Use the ACC-150 anti-corrosion concentrate in the water.
The jigs are usually not included with the machine; you choose them by the tools you want to sharpen. All jigs fit both the T-4 and the T-8:
SE-77 – chisels and plane blades with a straight or slightly cambered edge
KJ-45 and KJ-140 – centring knife jigs for symmetrical bevels
SVD-186R – turning gouges, carving gouges and V-tools
SVS-50 – skew chisels, parting tools and carving tools
AX-40 – axes
SVX-150 and SC-60 – scissors
SVH-320 – planer blades
DBS-22 – twist drills 3–22 mm
The HTK-906 and TNT-808 kits collect the most common jigs for hand tools and woodturning respectively.
There are several good ways to sharpen chisels and plane irons: water stones, diamond stones, oil stones and sharpening machines such as Tormek. All give sharp edges, but they differ in speed, maintenance and price.
A honing guide makes it easier to keep the same angle every time. The most important thing is to find a method you enjoy and use often. The guide helps you choose.
