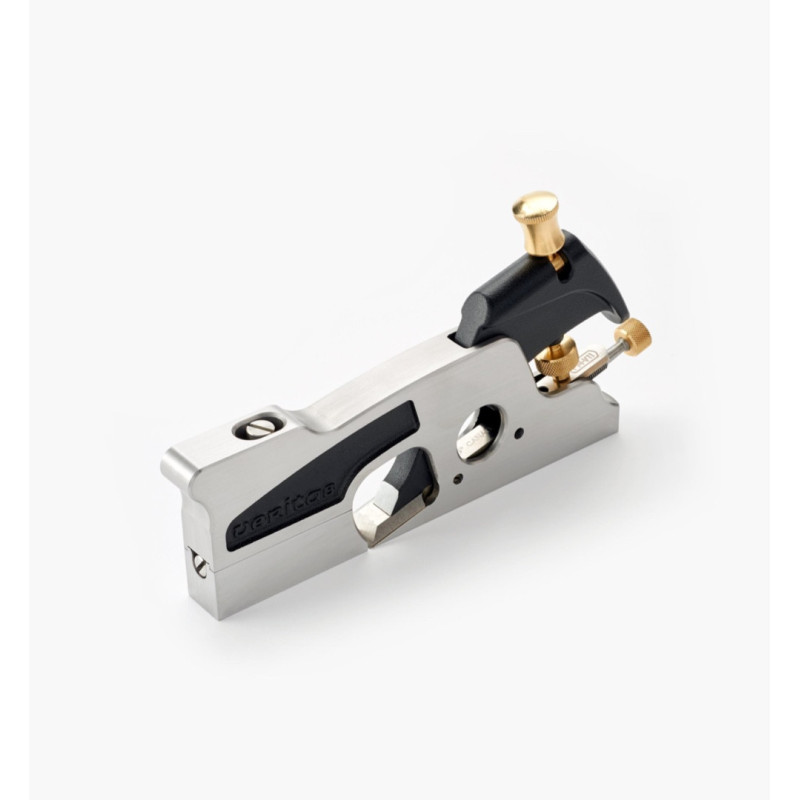

Veritas Medium Shoulder Plane, PM-V11
kr2,508.75
kr2,383.31
Save 5%
Instead of kr3,100.00
Tax included
Medium shoulder plane for trimming tenon shoulders and fine-tuning rebates. 15° bed and 25° bevel give a 40° cutting angle, adjustable mouth and a PM-V11 blade.
A shoulder plane is a specialised rabbet plane with a blade that reaches both edges. It is used to trim tenon shoulders and fine-tune rebates until the joint fits.
The medium shoulder plane is sized to handle a wide range of work. The body is ductile cast iron, machined and ground so that the sole and sides are flat and square to each other.
The lever cap has a pivoting knob that can be set to suit your hand and grip. The concave knob sits between thumb and forefinger, and a through-hole in the body gives a secure hold without squeezing hard.
The adjustable toe lets you close the mouth for fine shavings with little tear-out. The low bed angle combined with the blade bevel gives a cutting angle that works well on end grain. Set screws along the side hold the blade position, so it does not need resetting after sharpening.
Length 178 mm (7"). Width 17.5 mm (11/16"). Bed angle 15°, bevel angle 25°, cutting angle 40°. Blade lapped, 3.2 mm (1/8") thick, PM-V11. Weight 0.9 kg (2 lb). Made in Canada.
05P41.71
Data sheet
- Hyveltyp
- Simshyvel
- Sulans längd
- 150–249 mm
- Bäddvinkel
- 15°
- Material
- Segjärn
- Stål ingår
- Ja
Specific References
- MPN
- 05P4171
- HS code
- 82053000
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
