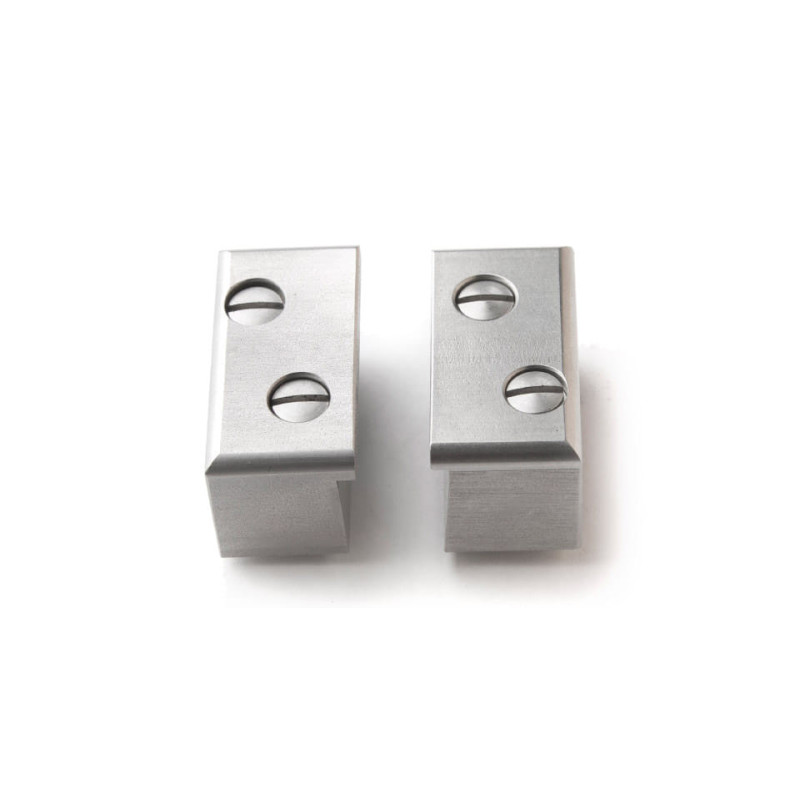

Lie-Nielsen Honing Guide Jaws for Mortise Chisels
kr653.75
Tax included
Tall jaws for the Lie-Nielsen Honing Guide that hold all Lie-Nielsen mortise chisels except the 1/10", as well as the larger bevel edge chisels.
Interchangeable jaws for the Lie-Nielsen Honing Guide (1-HG) for sharpening and honing mortise chisels. The jaws hold all Lie-Nielsen mortise chisels except the 1/10". Because they are taller than the standard jaws, they also take the larger Lie-Nielsen bevel edge chisels.
The mortise chisel jaws increase the honing angle by about 5° compared with the standard jaws at the same projection. The distance the blade projects from the front of the guide sets the honing angle, for example about 38 mm (1-1/2") for 25° and 29 mm (1-5/32") for 30°.
Fit the jaws to the guide body with the lock screws loose, close the guide, then tighten the lock screws once the jaw halves meet so the jaws sit square.
Fits: Lie-Nielsen Honing Guide 1-HG. Patented. Supplied as a pair.
The Lie-Nielsen honing guide is supplied with the standard jaws, which fit most Lie-Nielsen plane blades and bevel-edge chisels 1/4"–3/4". For other tools there are extra jaws:
Chisel jaws – for 1/8" and 3/16" chisels
Mortise chisel jaws – for all Lie-Nielsen mortise chisels and the 1" chisel
Long jaws – for short blades, such as spokeshaves and the No. 10 1/4, 041, 042, 073 and 85 planes
Skewed jaws 18° and 30° – for skewed blades, such as the No. 140 block plane
The jaws are made for Lie-Nielsen's own blades and chisels and do not always fit other makers' tools.
There are several good ways to sharpen chisels and plane irons: water stones, diamond stones, oil stones and sharpening machines such as Tormek. All give sharp edges, but they differ in speed, maintenance and price.
A honing guide makes it easier to keep the same angle every time. The most important thing is to find a method you enjoy and use often. The guide helps you choose.
A honing guide holds the tool at the right angle to the stone. A side-clamping honing guide grips the tool from the sides and suits chisels and narrow plane irons well. A top-clamping honing guide holds from the top and also handles blades with bevelled sides and unusual shapes.
Both work well, and the choice depends on the tools you have. The guide compares the types.
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
