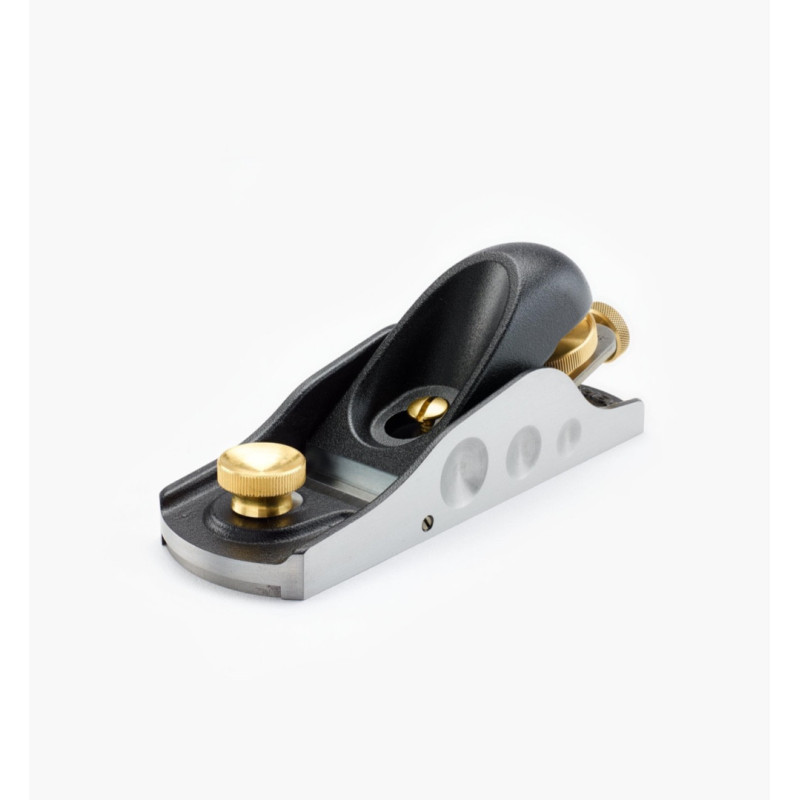

Veritas Low-Angle Block Plane, 12°
kr1,988.75
Tax included
Veritas low-angle block plane with a 12° bed and a 37° cutting angle with a 25° blade, good for end grain. Tall side wings for shooting and combined depth and lateral adjustment.
The Veritas low-angle block plane has a 12° bed. With a 25° bevel blade the cutting angle is 37°, which makes the plane well suited to end grain, where planes with a higher cutting angle are more likely to tear the fibres.
The side wings are tall and machined at 90° to the sole, so the plane can be used on its side on a shooting board to trim miters and end grain. Recessed finger grips on both sides let you hold the plane close to the sole for fine work.
Depth and lateral position are set with one mechanism, and the adjustment is very sensitive. Two guide screws hold the blade in place and keep it from shifting sideways under load.
The body is ductile cast iron and stands up to hard knocks. The adjustable nosepiece does not extend past the body, so it cannot be driven into the blade if the plane is dropped. The sides and sole are milled and the sole is surface ground.
Lapped blades with 38° and 50° bevels for difficult grain are available as accessories (sold separately).
Bed angle 12°, cutting angle 37° with a 25° blade, blades in A2, O1 or PM-V11. Made in Canada.
Supplied without blade. Choose a blade separately.
05P22.50
Data sheet
- Hyveltyp
- Stöthyvel
- Bredd (tum)
- 1 5/8" (41 mm)
- Sulans längd
- 150–249 mm
- Bäddvinkel
- 12°
- Material
- Segjärn
- Stål ingår
- Nej
Specific References
- EAN13
- 722356002520
- MPN
- 05P2250
- HS code
- 82053000
Veritas bevel-up planes hold the blade bevel up in a 12° bed. The cutting angle is therefore the bed angle plus the blade's bevel angle:
A 25° blade gives a 37° cutting angle – good for end grain and easy wood
A 38° blade gives a 50° cutting angle (York pitch) – a good start for difficult grain
A 50° blade gives a 62° cutting angle – for the most difficult wood
You change the cutting angle by swapping blades, or by honing a higher micro-bevel on the blade you have.
Which blade fits depends on the width of the plane. The blades come in A2, O1 and PM-V11 and with a 25°, 38° or 50° bevel:
1-5/8" – the Low-Angle Block Plane
1-3/4" – the Small Bevel-Up Smoother
2" – the Low-Angle Smooth Plane
2-1/4" – the Low-Angle Jack Plane, the 164 smoother and the Bevel-Up Jointer
Toothed A2 blades are also available for several of the planes, for difficult grain and for keying surfaces before veneering.
Veritas planes come with three types of steel. All give sharp edges, but they differ in how long the edge lasts and how easy the steel is to sharpen:
O1 – carbon steel that gets very sharp and is the easiest to hone
A2 – tool steel that holds an edge longer but takes a little longer to sharpen
PM-V11 – Veritas powder-metallurgy steel that holds an edge long and is still easy to sharpen
PM-V11 is the premium choice. O1 suits you if you sharpen often and want the keenest edge.
Most Veritas planes are supplied with a lapped blade, and the product name states which steel is included, for example A2, O1 or PM-V11.
Some versions are sold without a blade or as the body only, so you can choose the steel and bevel angle yourself. The name then says "without blade" or "body only". You will find matching blades among the Veritas replacement blades.
For small projects such as boxes, trays and other small pieces of joinery, we usually recommend one of these Veritas planes:
Veritas Low-Angle Block Plane (12°)
Veritas Small Bevel-Up Smooth Plane
Veritas Bevel-Up No. 1 Plane
All three are easy to handle and well suited to small workpieces. For the low-angle block plane you can also add an extra tote, which gives a steadier grip when you plane for longer stretches.
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
