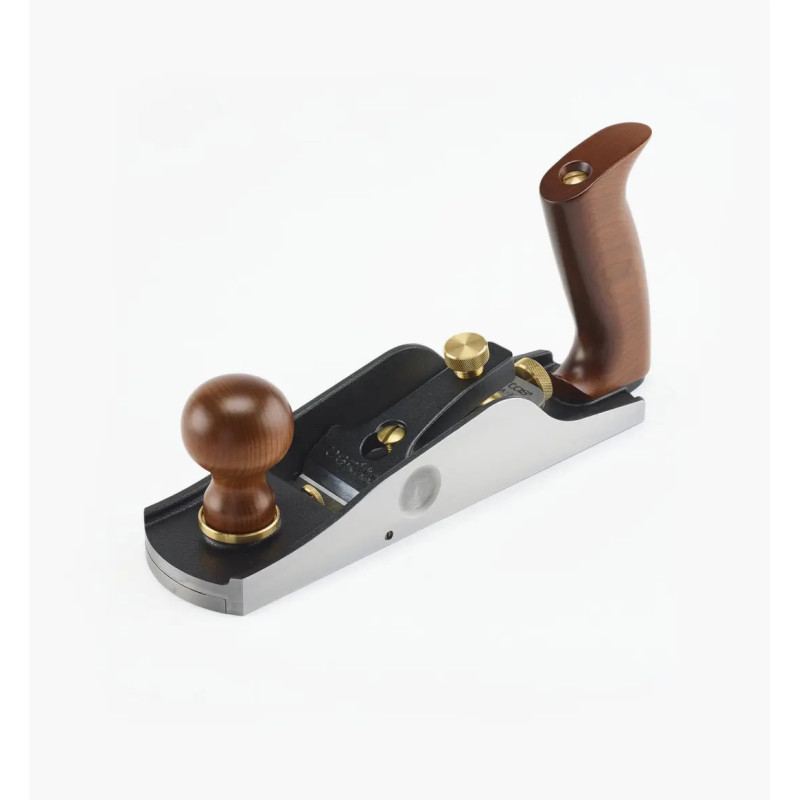

Veritas Low-Angle Smooth Plane, O1
kr505.00
kr479.75
Save 5%
Instead of kr3,478.75
Tax included
Veritas low-angle smooth plane with an O1 blade for smoothing, end grain and shooting mitres. 12° bed, 37° cutting angle and adjustable mouth.
A low-angle smooth plane with the blade bedded bevel up, in the same way as a low-angle block plane. It is used for smoothing surfaces, preferably with skewed strokes, and for planing end grain. The wide side wings also make it suitable for shooting mitres.
With the 12° bed and the 25° blade bevel the cutting angle is 37°, which gives a clean surface on end grain. To smooth difficult grain, raise the cutting angle by switching to a blade with a steeper bevel, 38° or 50°. A toothed A2 blade is also available for particularly difficult wood.
The body is cast from stress-relieved cast iron. The mouth adjusts from a narrow slit for fine shavings to a wider opening for heavier cuts, and a stop-screw makes the setting repeatable. Depth and lateral adjustment are set with a single combined adjuster knob. The front knob and rear handle are hardwood.
Supplied with a lapped O1 blade with a 25° bevel, 51 mm (2") wide and 3.2 mm (1/8") thick.
Length 254 mm (10"), width 64 mm (2 1/2"), blade width 51 mm (2"), blade thickness 3.2 mm (1/8"), bed angle 12°, bevel angle 25°, cutting angle 37°, O1 tool steel, weight just over 1.6 kg (3 1/2 lb). Patented. Made in Canada.
05P25.51
Data sheet
- Hyveltyp
- Bänkhyvel
- Bredd (tum)
- 2" (51 mm)
- Sulans längd
- 250–349 mm
- Bäddvinkel
- 12°
- Material
- Gjutjärn
- Stål ingår
- Ja
Specific References
- MPN
- 05P2551
- HS code
- 82053000
Veritas bevel-up planes hold the blade bevel up in a 12° bed. The cutting angle is therefore the bed angle plus the blade's bevel angle:
A 25° blade gives a 37° cutting angle – good for end grain and easy wood
A 38° blade gives a 50° cutting angle (York pitch) – a good start for difficult grain
A 50° blade gives a 62° cutting angle – for the most difficult wood
You change the cutting angle by swapping blades, or by honing a higher micro-bevel on the blade you have.
Which blade fits depends on the width of the plane. The blades come in A2, O1 and PM-V11 and with a 25°, 38° or 50° bevel:
1-5/8" – the Low-Angle Block Plane
1-3/4" – the Small Bevel-Up Smoother
2" – the Low-Angle Smooth Plane
2-1/4" – the Low-Angle Jack Plane, the 164 smoother and the Bevel-Up Jointer
Toothed A2 blades are also available for several of the planes, for difficult grain and for keying surfaces before veneering.
Veritas planes come with three types of steel. All give sharp edges, but they differ in how long the edge lasts and how easy the steel is to sharpen:
O1 – carbon steel that gets very sharp and is the easiest to hone
A2 – tool steel that holds an edge longer but takes a little longer to sharpen
PM-V11 – Veritas powder-metallurgy steel that holds an edge long and is still easy to sharpen
PM-V11 is the premium choice. O1 suits you if you sharpen often and want the keenest edge.
Most Veritas planes are supplied with a lapped blade, and the product name states which steel is included, for example A2, O1 or PM-V11.
Some versions are sold without a blade or as the body only, so you can choose the steel and bevel angle yourself. The name then says "without blade" or "body only". You will find matching blades among the Veritas replacement blades.
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
Most products are restocked on an ongoing basis, but delivery times from the manufacturer vary. When an item is out of stock, the button Notify me when available appears on the product page.
Click the button and enter your email address, and we will email you as soon as the item is back in stock. If you are logged in, your email address is registered automatically. If you want to know when the next delivery is expected, you are welcome to contact us.
How often items are restocked depends on the supplier. We receive deliveries from Veritas about once a month, Lie-Nielsen ships in batches and we order from Incra about once a year. You can also add the item to a wishlist in your account, where you can see whether it is in stock.
