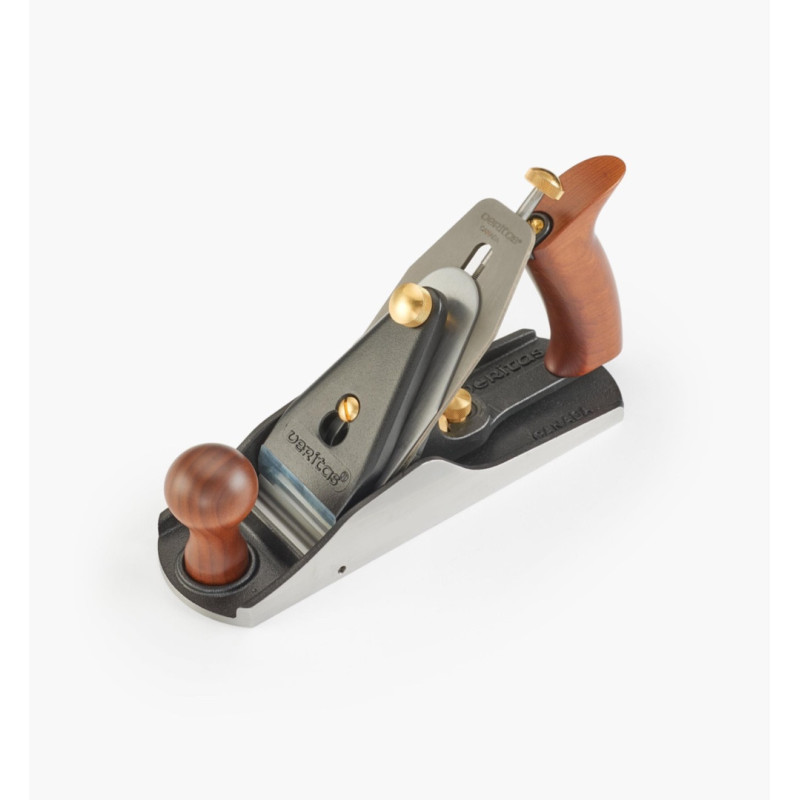

Veritas No. 4 1/2 Smoothing Plane
kr3,210.00
Tax included
Heavy smoothing plane for final surfacing after a jack plane or thickness planer. Frog extends to the sole, mouth set without removing the lever cap and a 254 × 73 mm (10" × 2 7/8") sole.
The No. 4 1/2 smoothing plane is used for the final pass on a surface that has already been worked with other planes or a thickness planer. It has enough mass to cut smoothly and steadily.
The frog runs all the way down to the sole and supports the blade across its full width, which reduces chatter. The mouth is adjusted by loosening two screws and turning the thumb wheel. It can be closed to a narrow slit for fine shavings with little tear-out, or opened for heavier cuts, without removing the lever cap.
The body is fully stress-relieved ductile cast iron so it keeps its shape over time. The sole is surface ground, flat and square to the sides, with extra-wide side wings that support the plane on a shooting board. The front knob and rear tote are hardwood. Blade depth and lateral position are set with a single combined mechanism.
Sole 254 × 73 mm (10" × 2 7/8"). Blade 60 mm (2 3/8") wide and 3.2 mm (1/8") thick, lapped. Patented. Made in Canada.
Supplied without blade. Takes Veritas O1, A2 or PM-V11 blades, sold separately.
05P23.50
Data sheet
- Hyveltyp
- Bänkhyvel
- Bredd (tum)
- 2 3/8" (60 mm)
- Sulans längd
- 250–349 mm
- Material
- Segjärn
- Stål ingår
- Nej
- Bänkhyvel nr
- Nr 4 1/2
Specific References
- EAN13
- 722356005088
- MPN
- 05P2350
- HS code
- 82053000
