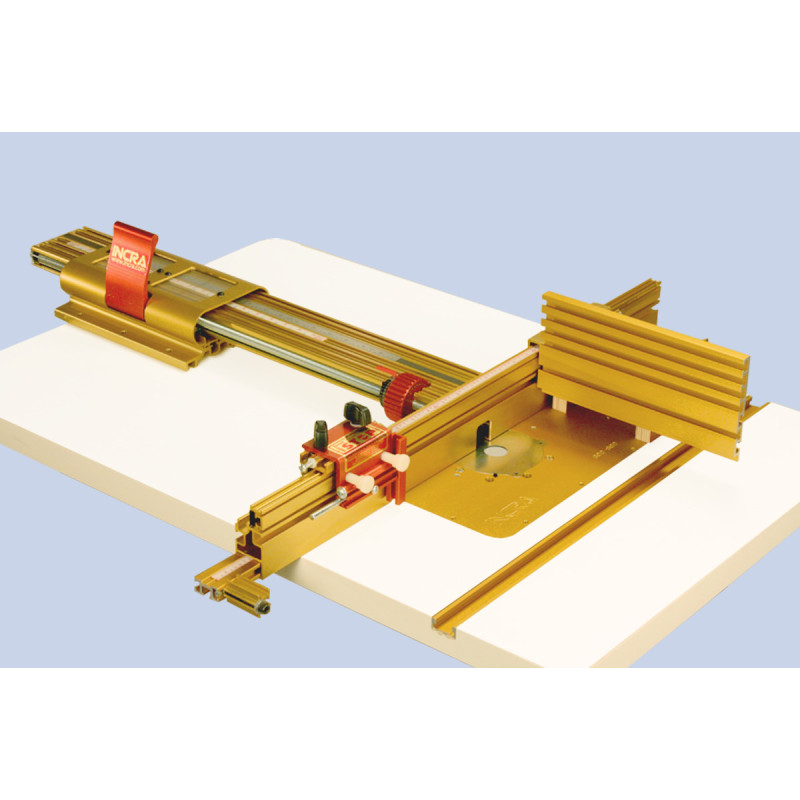

INCRA LS 430 mm Standard Joinery Fence System (Metric)

The INCRA LS is a precision positioning fence for router tables, drill presses and band saws, designed for the most serious woodworker yet easy enough for a beginner to use. LS stands for Lead Screw: lift the red locking lever and the steel lead screw snaps the fence to the dead center of any 1 mm increment, accurate to 0.05 mm over the entire range. Between increments, the integrated micro-adjust knob gives 0.025 mm resolution. A single lever controls all functions, and the recessed cursor windows are easy to read.

The positioner has an engraved primary steel scale showing distance from the cutter and a floating reference scale that can be zeroed to the last cut. The steel mounting bracket is slotted vertically for different fences and installation heights, and a removable T-slotted sub base allows concealed mounting to the router table. With the template library you can rout box joints and dovetails in many patterns using just the fence and a bit.

The system includes:
LS positioner
28" Pro II fence, machined flat with T-slot
INCRA Shop Stop
13" telescoping stop extender bar with stop
Jumbo Right Angle Fixture
Master Reference Guide with template library

Facts:
Range 430 mm
1 mm increments, accuracy 0.05 mm
Micro adjust 0.025 mm
