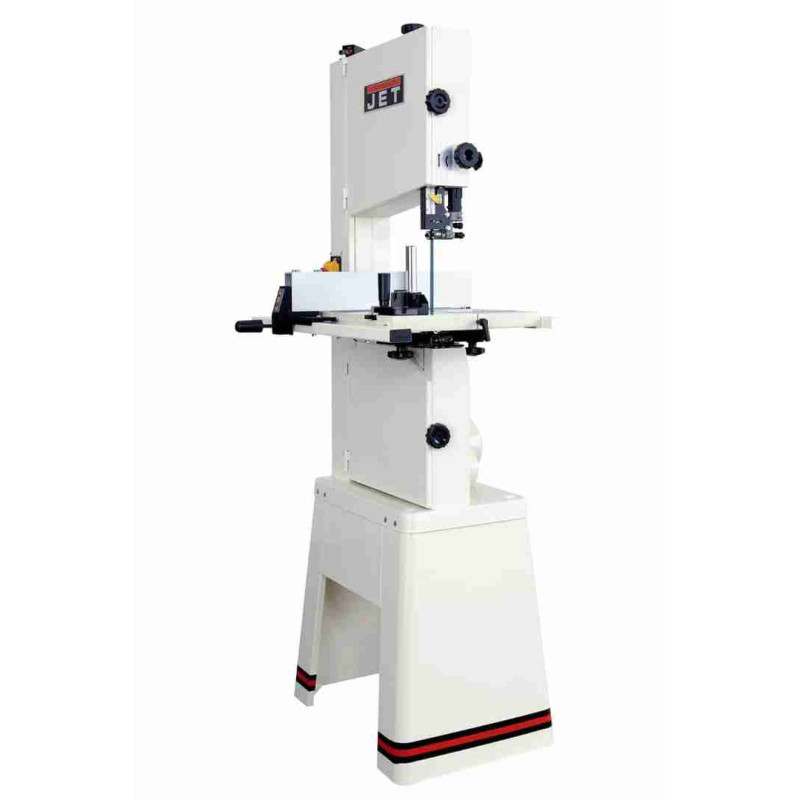

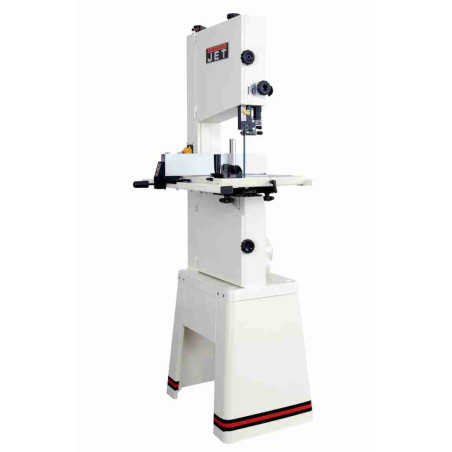

JWBS 14Q-M Wood Bandsaw

Cast iron table which can tilt from -10° to 45°
Upper and lower ball bearing blade guides
The mitre fence is ‘T’ slotted into the table for accuracy, safety and extended capacity
Floor standing welded steel chassis
Rip fence assembly with re-saw attachment

Motor (VWheel diameter (mm) 355
Maximum cutting height/resaw capacity (mm) 200/350
Table tilt -10°-0°-45°
Table size (mm) 500 385
Blade speed (m/min) 800
Saw blade (mm) 2’560
Saw blade width min/max. (mm) 3/25
Blade guide Ball bearing
Table height from floor (mm) 1’055
Dimensions (mm) 830 / 785 1’750
Weight (kg) 97
Dust port (mm) 50
