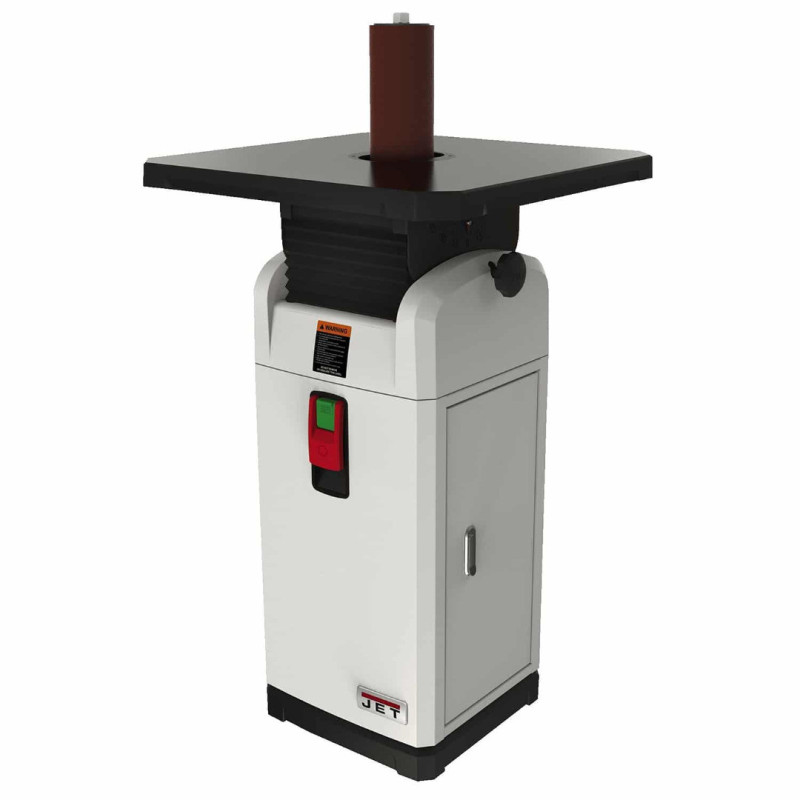

JOSS-S Oscillating Spindle Sander

Wash plates make a chamber under the table to create a strong suction effect and dust-free working area
The large cast iron table can be angled forwards by 45° and backwards by 15° and features a 90° locking position
Spindle lock for quickly changing the spindle and abrasives
38mm oscillation stroke, main spindle guided in precision ball bearings
Powerful worm gear operates in an oil bath – to ensure a long lifespan
Powerful 1.2kW induction motor
Sander spindles, abrasive sleeves and table inserts can be kept clean in the machine base cabinet

Motor (V/kW) 230/1.2
Spindle speeds (rpm) 1’450
Spindle diameter (mm) 6 /9 / 12 / 16 / 19 / 25 / 38 / 50 / 75 / 100
Max. sanding height (mm) 80 – 160
Table size (mm) 620 x 620
Table tilt 45° forward / 15° back
Sanding spindle height (mm) 150/230
Oscillations/Minute 60
Osciallation stroke (mm) 38
Dust port (mm) 100
Dimensions (mm) 700 x 760 x 1’130
Weight (kg) 98
