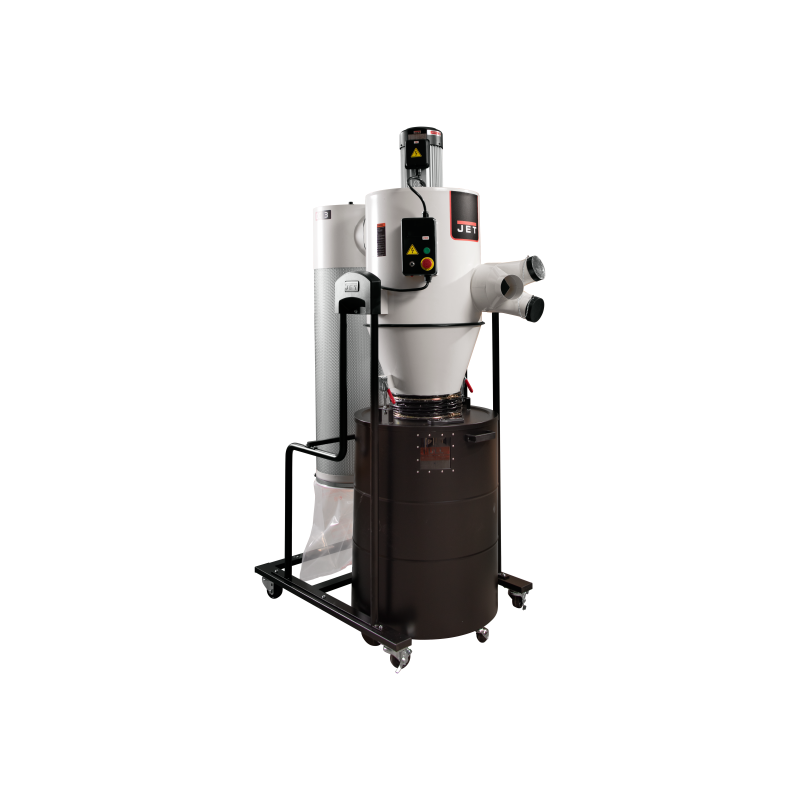

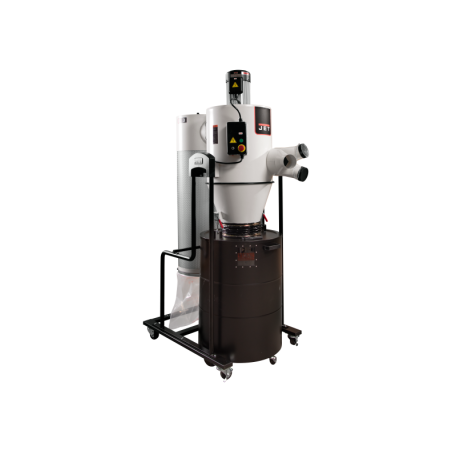

JCDC-30-T Cyclone Dust Collector

More suction power using the same motor output, quiet operation
Two-level air filtration makes the device more effective and efficient
Powerful cyclone function, separates chips from dust to relieve pressure on the fine mesh filter
Filter efficiency level of 99% for particles ≥ 2 microns.
Filter cartridge with quick-clean feature using the lever
Debris and chips are collected in the 250-litre metal drum
Quick emptying with the drum’s quick release fasteners and separate castors
Castors on the device allow it to be moved around the workshop
Includes radio remote control with a range of 15 metres, with a timer for 2, 4, 6, 8 hours

Motor (V/kW) 400/2.7
Air flow rate (m3/h) 2’540
Vaccum pressure (pA) 1’700
Dust inlet diameter (mm) 203
Hose diameter (mm) 3 x 100
Filter efficiency with particle size 99% at 2 Micron
Collection drum capacity (lt.) 250
Noise level (LpA, dB) 76
Collector bag size (mm) 980 x 1’200
Remote control/timer (h) Yes / 2, 4, 6, 8hr
Dimensions (mm) 1’450 x 770 x 2’235
Weight (kg) 110
