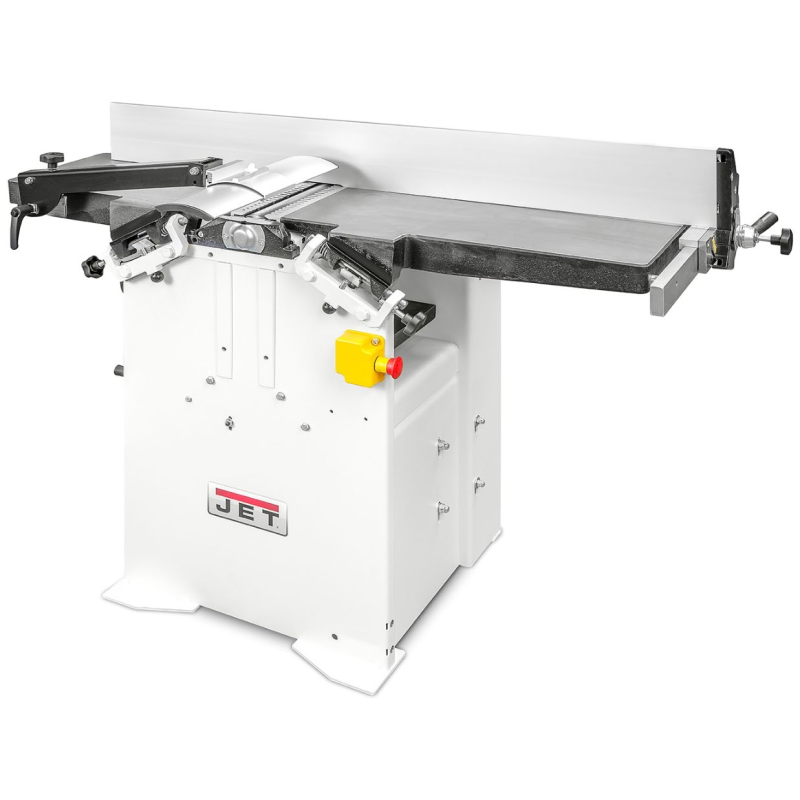

RDJ-310HH-T Planner Thicknesser – Helical Head

Integrated spiral planing shaft fitted with 17 × 4 -fold carbide cutting inserts (68 in total). Optimal surface finish through drawn cut, tear-free even with an unfavourable grain structure. The volume of chips is significantly reduced (approx. 50%). Extremely quiet. The fine-grain carbide cutting inserts are robust and wear proof (5×HSS), simply continue turning by 90° to the next cutting edge where required. A machine investment that will pay off.

Motor (V/kW) 400v /3,7
Thicknesser height max – 230mm
Thicknesser depth of cut max. – 4mm
Thicknesser table dimensions – 430 x 310mm
Planer depth of cut max. – 4mm
Planer table dimensions 1,328 x 310mm
Number of revolutions (rpm) – 5,500
Cylinder diameter – 70mm
Number of cutting inserts – 3 x 17
Dimensions 1,489 x 734 x 990mm
Weight – 280kg
