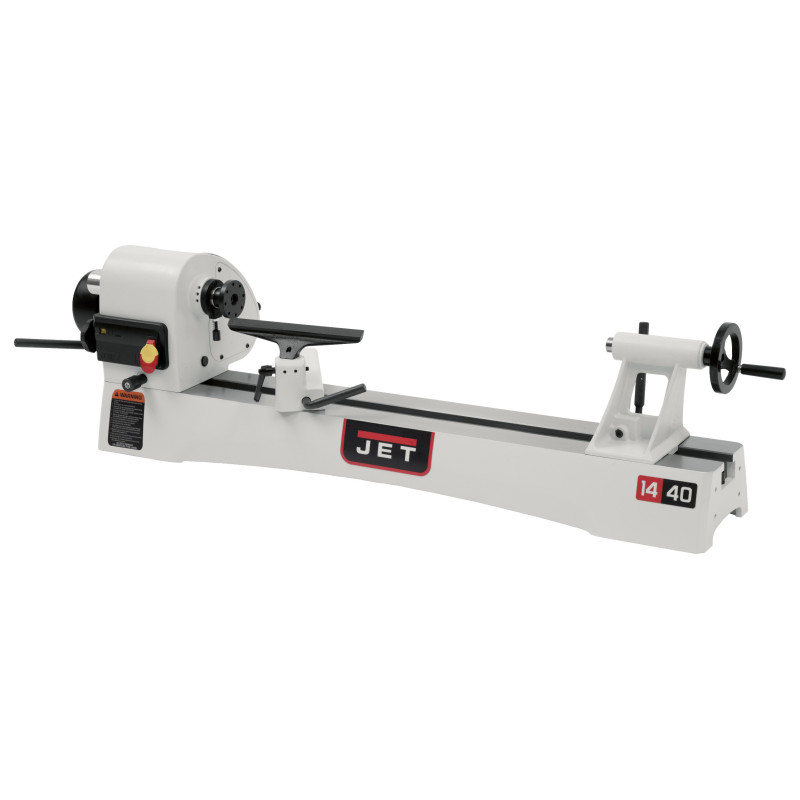

JWL-1440VS-M Variable Speed Wood Lathe

Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces

Headstock moves across the entire machine bed, pivots by 360° with
locking positions at 0° / 30° / 60° / 90° / 135° / 180° / 270°

Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2’500rpm

Spindle lock on the front of the headstock to easily change the faceplate and turning chuck

Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely

Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole

Integrated spindle indexing device 36—10°

Motor (V/kW) 230/1.3
Swing over bed (mm) 370
Swing over tool rest base (mm) 280
Centre distance (mm) 1’016
Spindle speeds (rpm) 280 – 2’500, variable
Spindle nose M33 x 3.5
Spindle index lock 36 x 10°
Headstock spindle taper MT2
Tailstock spindle taper MT2
Tailstock hole diameter (mm) 9
Tailstock ram travel (mm) 108
Steel support (mm) 300/25.4
Dimensions (mm) 1’850 x 535 x 1’250
Weight (kg) 165
