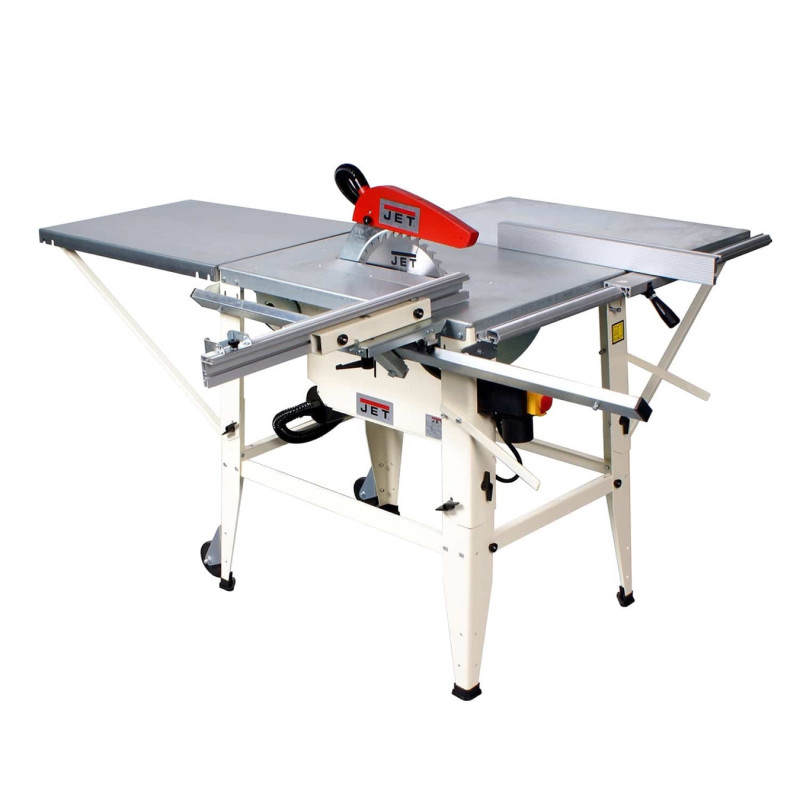

Construction Table Saw 230V

Foldable legs and bayonet mounted rear table extension facilitate quick machine start-up
Powerful motor with brake, suitable for continuous operation
Galvanized steel machine table withstands corrosion and wear
Anodized aluminium table insert
Sliding table with ball bearings moves accurately for straight and angled cuts
Convenient blade tilt up to 47° via hand wheel, adjustable stop at 0°
Transport device facilitates simple change of positions
With optional right hand table and fence, part number 10000811.

Motor (V/kW) 230/2.2
Blade speed (U/min) 2’950
Blade-size/bore (mm) 315/30
Mitre capacity 0° – 47°
Max. cutting depth at 0°/45° (mm) 90/60
Max. cutting width (mm) 310
Table size (mm) 800 x 550
Extension size (mm) 800 x 550
Precision sliding table (mm) 250 x 230
Max. length of cut (mm) 600
Dimensions (mm) 2’050 x 970 x 1’000
Weight (kg) 69
