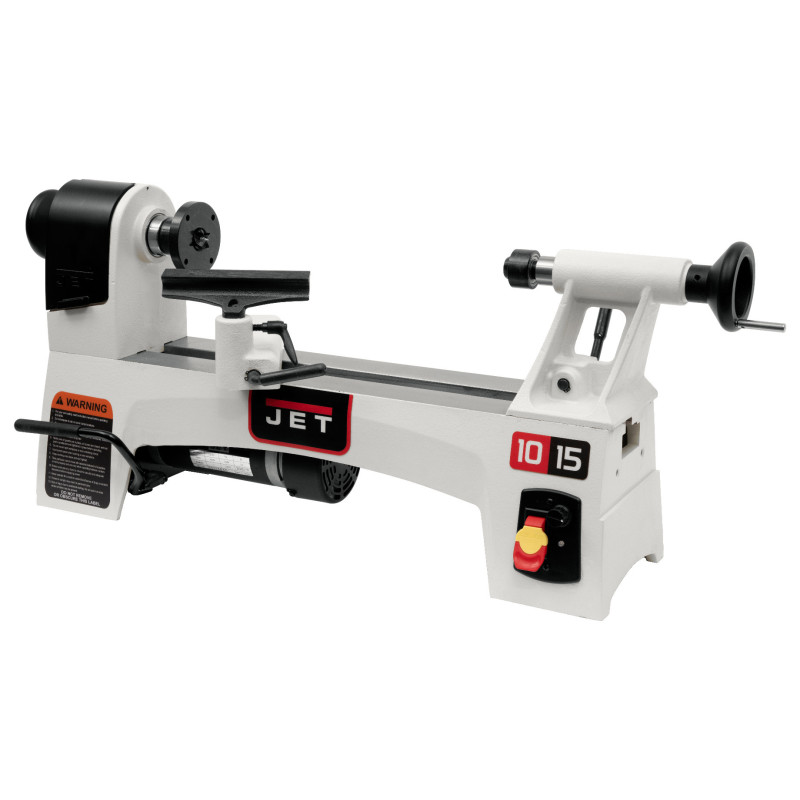

JWL 1015VS Wood lathe with electronic control

Heavy, extra-wide cast iron machine bed (GG-20) for the ultimate in smooth operation and stability when working on unbalanced pieces
Six spindle speeds: 400, 700, 1’000, 1’500, 2’200 and 3’300rpm (JWL-1015-M)
Infinitely variable speed control with 3 belt speeds, from 200 to 3’600 rpm (JWL-1015VS-M)
The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces (JWL-1015VS-M)
Easy belt access from the front, simple belt tensioning system
Poly-v belt drive, quiet and suitable for continuous operation
Integrated spindle indexing device 24—15°
Tailstock quill with 9mm hole allows material to be drilled through
Quick-release lever for simple and accurate positioning of tool rest and tailstock

Motor (V/kW) 230/0.6
Swing over bed (mm) 254
Swing over tool rest base (mm) 186
Centre distance (mm) 368
Spindle speeds (rpm) 400 / 700 / 1’000 / 1’500 / 2’200 / 3’300
Spindle nose M33 x 3.5
Spindle index lock 24 x 15°
Headstock spindle taper MT2
Tailstock spindle taper MT2
Tailstock hole diameter (mm) 0
Tailstock ram travel (mm) 50
Steel support (mm) 150/15.9
Dimensions (mm) 775 x 300 x 445
Weight (kg) 33
