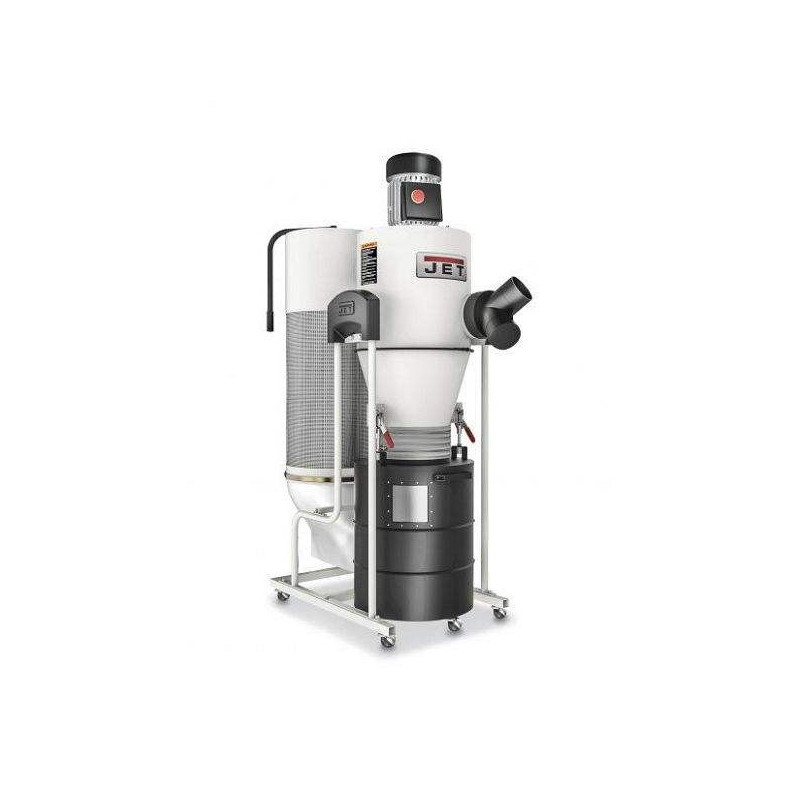

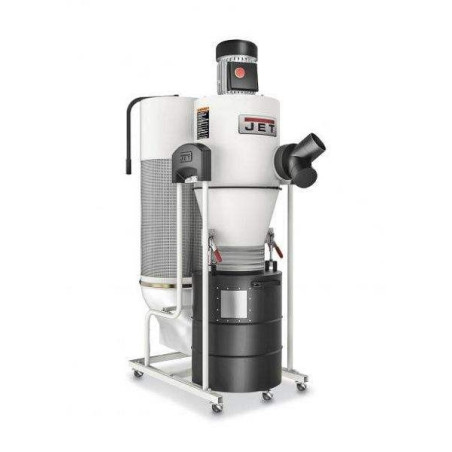

JCDC-15-M Cyclone Dust Collector

More suction power using the same motor output, quiet operation
Two-level air filtration makes the device more effective and efficient
Powerful cyclone function, separates chips from dust to relieve pressure on the fine mesh filter
Filter efficiency level of 99% for particles ≥ 2 microns
Filter cartridge with quick-clean feature using the lever
Debris and chips are collected in the 75-litre metal drum
Quick emptying with the drum's quick release fasteners and separate castors
Castors on the device allow it to be moved around the workshop

Motor (V/kW) 230/1.5
Air flow rate (m3/h) 1'530
Vaccum pressure (pA) 1'350
Dust inlet diameter (ø-mm) 152
Hose diameter (ø-mm) 2×100
Filter efficiency with particle size 99% at 2 Micron
Collection drum capacity (lt.) 75
Noise level (LpA, dB) 76
Collector bag size (mm) 660×700
Dimensions (mm) 1'195×560×1'715
Weight (kg) 66
