Self-guiding round over cutter from Trend, 4.8 mm radius and 8 mm shank, with two bearings for round over, quirk or bullnose.
Self-guiding round over cutter from Trend for rounding over edges. The bearing guides the cutter, so no side fence is needed.
Two bearings are supplied. Use the larger bearing for a round over. If the cutter is lowered, a top quirk is produced, and a second pass from the opposite side of the workpiece gives a bullnose moulding.

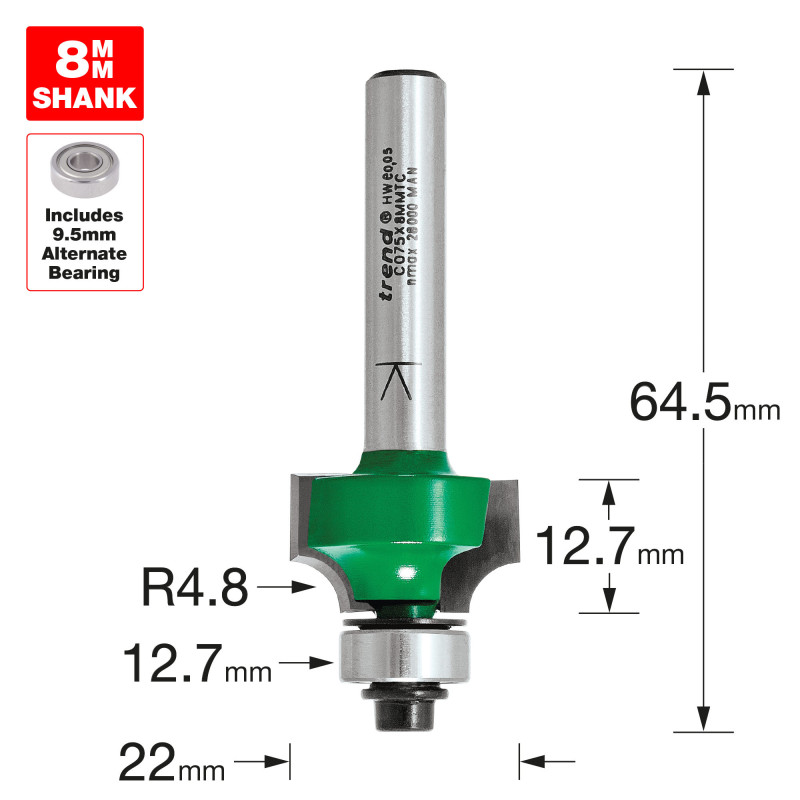

Diameter 22.22 mm, radius 4.8 mm (3/16"), cut height 12.7 mm (1/2"), bearings 9.5 and 12.7 mm, overall length 64.3 mm, shank 8 mm.
Data sheet
Specific References
Yes. The Trend T1 is a compact router that takes bits with shanks up to 8 mm. All Trend router bits and sets with 8 mm shanks therefore fit.
Bits with 1/2" (12.7 mm) or 12 mm shanks do not fit the T1; they need a larger router. If you have bits with 6 mm or 1/4" shanks, you need a collet in that size.
