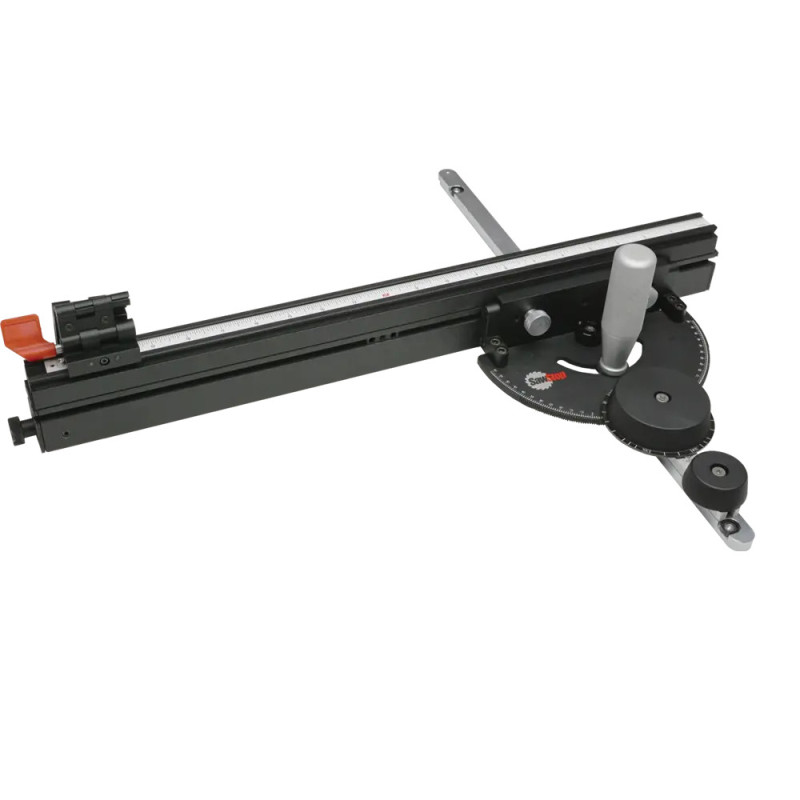

SawStop Revolution Miter Gauge

SawStop Revolution miter gauge. The angle dial has preset increments of 1°, 1/2°, 1/4° or 1/10° with tactile clicks for quick, accurate settings, and the common angles 0°, 22.5°, 30° and 45° are marked.

A sliding wedge system takes fence attachments and repeatable stops. The reversible, telescoping fence works equally well in left or right slots. The tool-free articulating flip stop allows repeat cuts up to 37-1/2", with or without a sacrificial fence, and a micro-adjuster fine-tunes the length without moving the stop. The stop has mounting holes for jigs.

Heavy-duty construction includes a steel miter plate made to tolerances under 0.001". A washer at the front of the bar fits 3/8" × 3/4" T-slots and keeps the gauge level when the head is pulled off the table; it can be removed for non-T slots. Three adjustable pucks eliminate side play.

Facts:
Angle range 60° left and right
Miter bar 20"
Fence length 19-1/2" retracted, 37-1/2" extended
Fence height 3"
Fits T-slots: 3/4" at top, 1" at bottom, 3/8" deep
Weight 3.81 kg
