Lie Nielsen hyvel för stötlåda

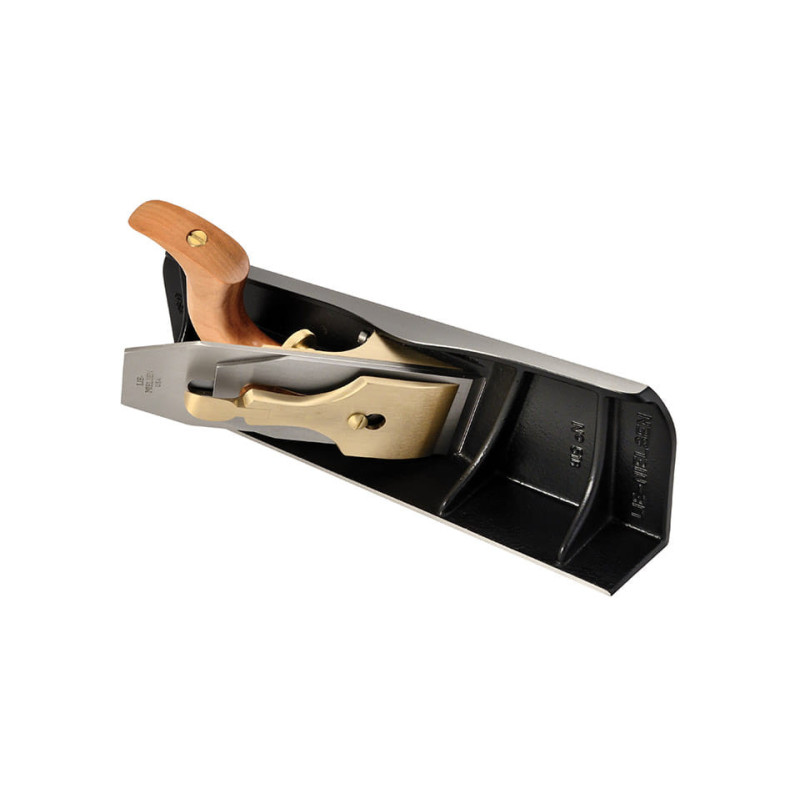

Lie Nielsen No. 51 Shoot Board Plane


This single purpose plane is designed to trim miters and other end grain cuts on a shooting board. The skewed cut is exceptionally effective.

Stanley first made its version in 1909. We redesigned the body casting to utilize our standard 2-3/8" Bench Plane Blade and Frog with the Bedrock adjustment.

• Just over 9 lbs (heavier than the original.)
• 15" long x 3-9/16" wide.
• Shoulder height of 2-1/8".

Will fit the original Stanley 52 Chute Board

Blade Sharpening:

Your Lie-Nielsen Shoot Board Plane is ready to cut wood out of the box. The blade is ground sharp at a 25° bevel. A secondary bevel of up to 5 degrees helps achieve a razor edge quickly. This also improves edge life in hardwoods. For more information on advanced sharpening we suggest David Charlesworth’s DVD Hand Tool Techniques Part 1: Plane Sharpening.

Mouth Adjustment:

To adjust the mouth opening, loosen the two locking screws at the back of the frog; then turn the middle adjuster screw. Observe the opening in front of the blade. When it is correct, set the locking screws again.

Improved Chipbreaker:

Our Improved Chipbreaker is 1/8" thick. The raised lip under the bevel of the chipbreaker is back beveled 1° to ensure that the leading edge contacts the blade firmly. You should never need to dress this surface, but if you do, use a very fine stone and be sure to maintain the angle. The 25° bevel may be honed occasionally. For general work, set the end of the chipbreaker about 1/16" from the cutting edge of the blade; for the finest smoothing work, set it closer to the edge.

Blade Adjustment:

To advance the blade, turn the adjuster nut clockwise. It is always a good idea to finish adjusting the blade by a forward adjustment to take up backlash and prevent the blade from moving. In order to be able to adjust the blade easily, do not overtighten the lever cap screw.
