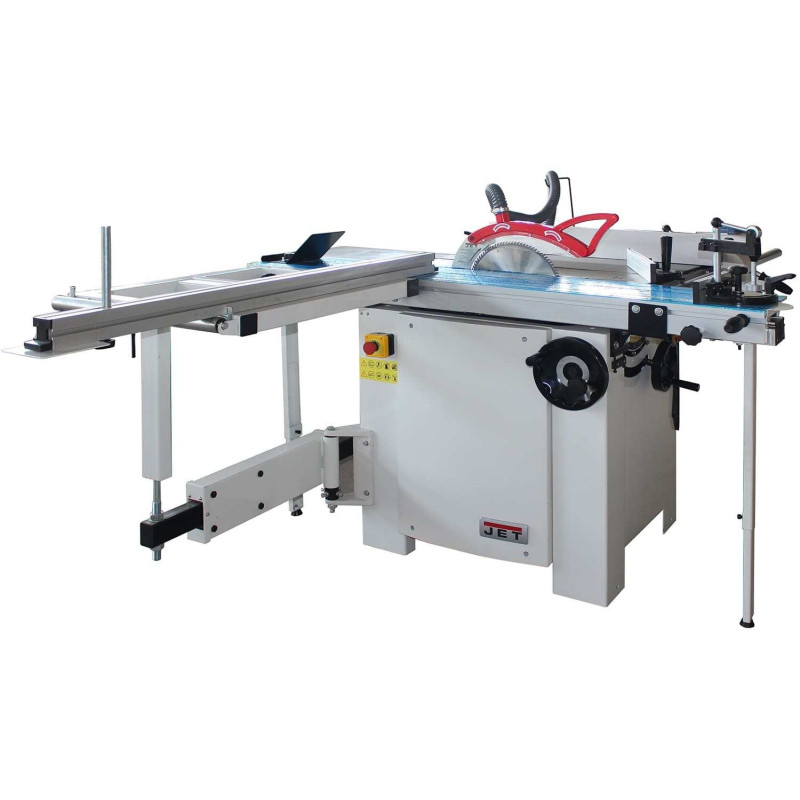

Justersåg, bordssåg JTSS 1600T, 400V trefas

Professional panel saw for working with wood and wood-based laminated materials The machine features a sliding table (carrier) with a 1’600mm travel distance
Supplied with various accessories, which is a definite advantage as no further parts purchase is needed The machine has a scoring blade driven by the main motor as well as a sawing module with tilting and height adjustment

Plan milled grey cast iron table

• Motor (V/kW) 230/2.4
• Blade speed (U/min) 4’500
• Blade-size/bore (mm) 315/30
• Mitre capacity 0° – 45°
• Max. cutting depth at 0° / 45° (mm) 100/80
• Max. cutting width (mm) 1’220
• Table size (mm) 800 x 385
• Extension size (mm) 500 x 310
• Table extension right (mm) 800 x 440
• Precision sliding table (mm) 1’600 x 270
• Max. length of cut (mm) 1’350
• Scoring blade speed (rpm) 8’500
• Scoring blade size/-bore (mm) 90/20
• Dimensions (mm) 1’750 x 3’000 x 1’200
• Weight (kg) 265
