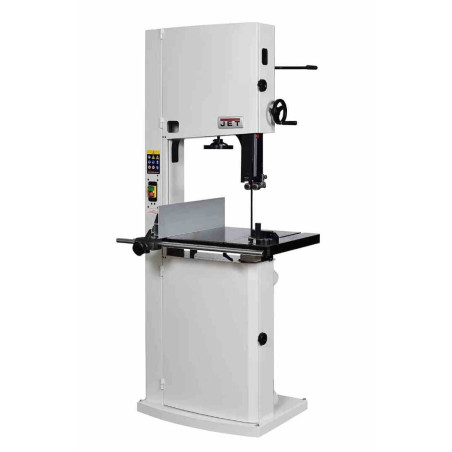

JWBS-18-M Bandsåg

692—508mm precision ground cast iron table for added stability and work support
Quick-release and tensioning blade system
Two selectable blade speeds and cast iron blade wheels
Electro-mechanical motor brake
Tool-less, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
Cast trunnion for better support and stability
Viewing window for easy blade tracking and blade tension control
406mm resaw capacity handles both large and small projects
Sturdy parallel fence with integrated fine-tuning, operated on a round rod
Heavy-duty guide post adjusted via a toothed rack and handwheel for optimal saw blade support

Wheel diameter 470mm
Max. height/-resaw cap, 406/457mm
Table size 692×508×41mm

Motor (V/kW) 230/1.5
Wheel diameter (mm) 470
Max. cutting height/-resaw capacity (mm) 406/457
Table tilt 5° left, 45° right
Table size (mm) 692 x 508 x 41
Blade speed (m/min) 570/900
Saw blade (mm) 3’810
Saw blade width min/max. (mm) 3/32
Blade guide – Ball bearing
Table height from floor (mm) 940
Miter t-slot (mm) 19.1 x 9.5
Dimensions (mm) 914 x 864 x 2’032
Weight (kg) 217
Dust port (mm) 100
