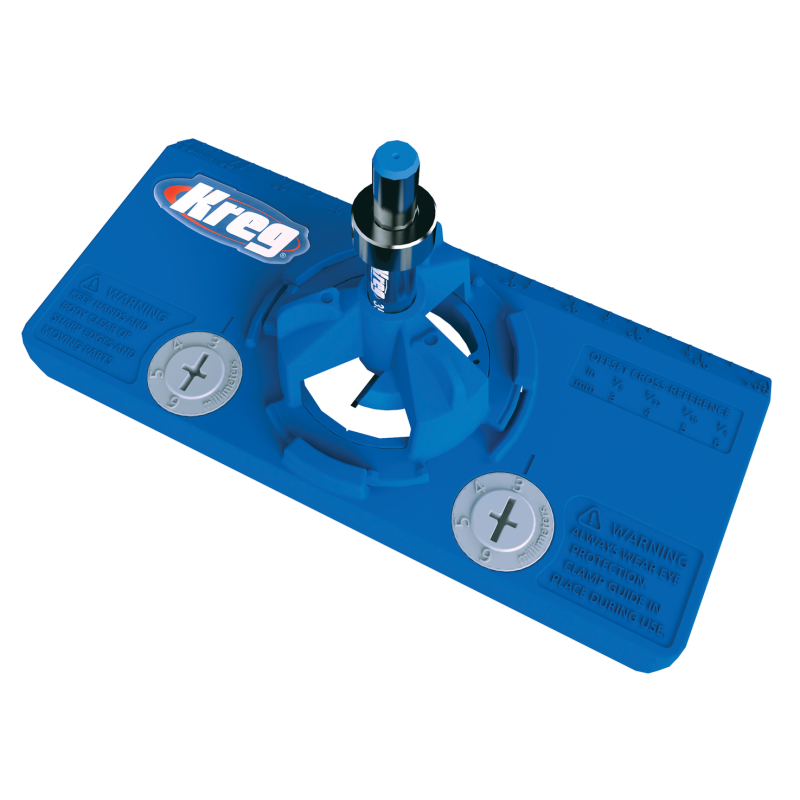

Concealed Hinge Jig

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. With this easy-to-use jig, you get drillpress accuracy using an ordinary hand drill. The jig ensures accurate hinge alignment for doors that fit perfect and work well. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset - which is dictated by each hinge - and an included stop collar ensures that the cup depth is correct every time. An integrated metric scale allows exact positioning of the hinge and a pair of smaller holes also allow drilling perfectly-positioned holes for the hinge mounting screws, ensuring that the hinge will fit accurately every time.
