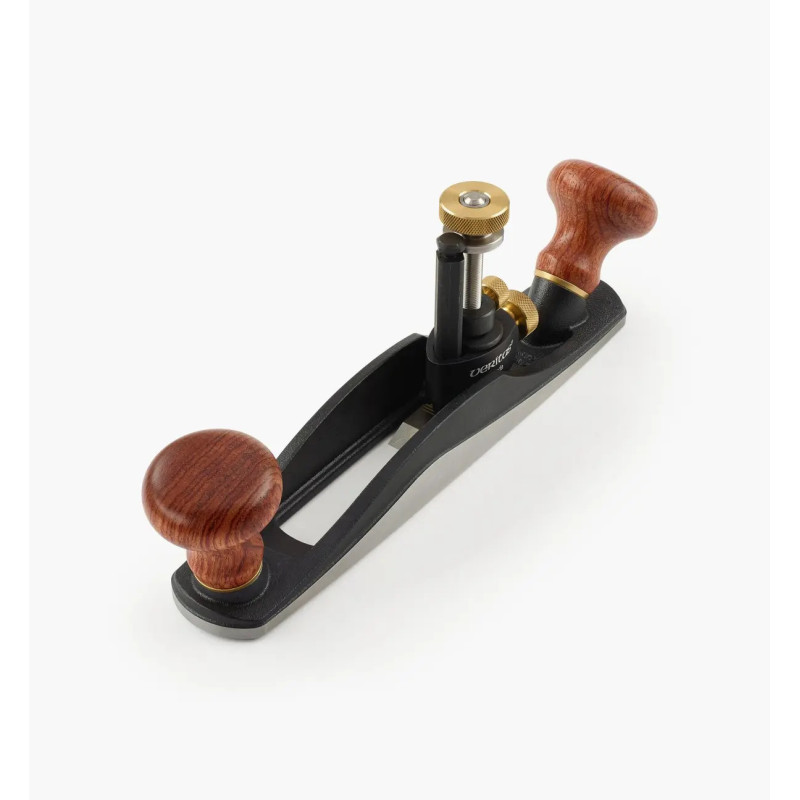

Veritas Hinge Mortise Plane
kr2,292.50
Tax included
This Veritas hinge mortise plane gives you the precise depth control of a router plane but with a long, narrow sole for good registration on door edges and other narrow workpieces.
This Veritas hinge mortise plane gives you the precise depth control of a router plane but with a long, narrow sole for good registration on door edges and other narrow workpieces. By establishing the edges with a chisel, you can cut a crisply defined mortise without the need for a template or jig, in many cases more efficiently than a power router. The large slot in the body lets you clearly see where you're cutting.
Depth setting is quick and easy, with a fine screw-feed mechanism and the resulting depth of cut controlled by a locking depth stop. A spring-loaded blade-clamping collar prevents the blade from shifting when the collar is loosened, allowing controlled adjustment to a depth of 1". It can also be set to fully release for quick blade removal.
Made from ductile cast iron, it has a 9-11/16" long, 1-13/16" wide sole, ground flat. The large wooden knobs are positioned with comfort and control in mind, with an angled rear knob to make it easier to push. The included 3/4" wide high-carbon steel cutter removes material quickly, and is interchangeable with the blades of the Veritas router plane. A blade sharpening jig for the two-piece blade is also included.
05P38.70
Data sheet
- Hyveltyp
- Grundhyvel
- Bredd (tum)
- 3/4" (19 mm)
- Sulans längd
- 150–249 mm
- Material
- Segjärn
- Stål ingår
- Ja
Specific References
- EAN13
- 722356014110
- MPN
- 05P3870
- HS code
- 83021000
Which plane to start with depends on what you will do, but for most people a smoothing plane (No. 4) or a jack plane (No. 5) is a good first choice. The smoothing plane gives smooth surfaces, and the jack plane is a versatile plane for both rough work and truing edges.
Low-angle jack planes such as the Lie-Nielsen No. 62 and the Veritas low-angle jack are also popular all-round planes. A block plane is a good addition for end grain and chamfers. The guide explains how the hand plane is built and which types exist.
Planes of cast iron and steel rust easily, especially in unheated workshops and from moisture on your hands. Wipe the plane after use and protect bare surfaces with a thin layer of wax or oil that will not mark the wood.
Store your planes dry, ideally in a plane sock or box. If rust has already formed, the guide shows how to clean and protect them.
