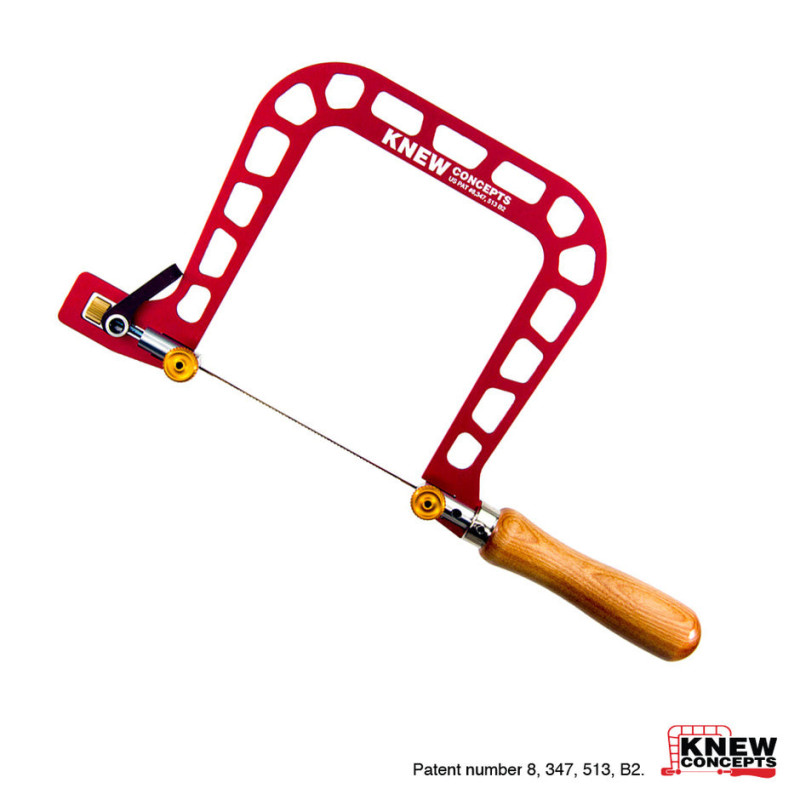

Knew Concepts 5" Mk.III Saw, Screw Tension

All Knew Concepts fret saws have a strong, light aluminium frame that keeps the blade under high tension. The models differ like this:

Mk.III – the lightest model, with screw or lever tension
Mk.IV – a triangulated truss frame that tensions the blade to 23–27 kg, much stronger and with less vibration. Red powder coat.
Mk.V – the same strong frame as the Mk.IV, with longer blade clamps that have sight holes so you can see the blade is held
Titanium – a welded titanium frame, the strongest and stiffest

For the Mk.III, Mk.IV and titanium saws there is a foam handle grip that makes the handle thicker and easier on the hands.

Read the guide here

The throat depth is the distance between the blade and the back of the frame, and decides how far in from the edge of the work you can cut:

3" (76 mm) – stiffest and lightest, best for small and fine work such as jewellery and marquetry
5" (127 mm) – the most versatile choice for most work
8" (203 mm) – reaches furthest into larger panels, but the frame is longer and slightly less stiff

If you are unsure, 5" is a good first choice. If you already have a saw, a 3" can be a good complement for detail work.

Read the guide here

It comes down to how often you change or release the blade:

Lever / cam lever tension – flip the lever forward to release the tension, move the blade and flip it back. The tension is the same every time. Best when you cut many inside holes and often re-thread the blade.
Screw tension – the tension is set with a screw. Simpler and less expensive, and works well if you rarely change blades.

Swivelling blade clamps let you turn the blade a full turn with click stops every 45°, so you can make long cuts where the frame would otherwise hit the work.

Read the guide here

Knew Concepts fret saws use standard plain-end blades, not pinned blades. All our wood and multi-purpose scroll saw and fret saw blades with plain ends fit, including in the deep 8" saws.

Each blade type comes in several numbers. Low numbers are thin with fine teeth for thin stock and tight curves, and high numbers cut faster in thick wood. Thanks to the high blade tension, the saws also handle the finest blades. A Skip No. 7 blade comes with the saw, and the blade length is 130 mm (5").
